| Products >> Plastics Machinery >> Chemical fiber and nonwovens extruder |
| |
|

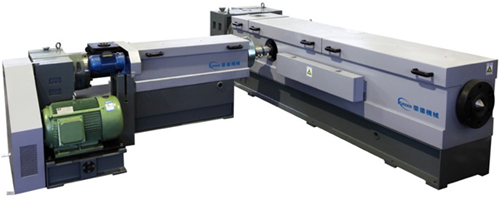

The extruders for RDM chemical fiber series and PP nonwoven series are mainly for extruding of spunbonded nonwoven fabrics. In production, usually two machines are connected to produce. The length-diameter ratio of the screw of the main extruder is 30:1, while that of the subordinate machine is 15:1, which mainly processes the recovered leftover materials and cloth scraps. Customers can choose the machines according to their needs, to produce nonwoven fabrics of different widths. |
 |
|
Technical data |
NO. |
Model |
L/D ratio |
Speed of screw(rpm) |
Capacity(kg/h) |
Power of motor(Kw) |
Heating power(Kw) |
Heating zone |
01 |
RDM105 |
30 |
75 |
160 |
55 |
40 |
6 |
02 |
RDM 120 |
30 |
75 |
200 |
75 |
42 |
6 |
03 |
RDM 130 |
30 |
75 |
240 |
90 |
42 |
6 |
04 |
RDM 135 |
30 |
75 |
260 |
90 |
54 |
6 |
05 |
RDM 150 |
30 |
75 |
320 |
110 |
72 |
6 |
06 |
RDM 160 |
30 |
75 |
400 |
132 |
72 |
6 |
07 |
RDM 170 |
30 |
75 |
450 |
160 |
84 |
7 |
08 |
RDM 180 |
30 |
65 |
520 |
185 |
96 |
8 |
09 |
RDM 200 |
30 |
65 |
750 |
220 |
130 |
9 |
|
Specifications and standard equipment are subject to change without notification.
PA6,PA66 L/D=25 ： 1 |
|
| |
|
|
|
 |
|
